RS 500

Machine for grinding down the teeth of HSS and friction circular saw blades

The RS 500 grinding machine is used for the complete removal of the teeth on HSS and friction circular saw blades, in case the saws have broken teeth.
The removal operation takes place in a short time, due to the machining with two coupled grinding wheels, the rigidity of the mechanical groups of the machine, and the rigid assembly of the circular saw with flanges.
The coolant system supplies a large quantity of coolant at the machining point, ensuring perfect cooling of the grinding, avoiding overheating of the circular saw blade, and the consequent loss of hardness.

Categories: ,

Description

Technical Data

Circular saw blade diameter 150 – 500 mm
Maximum grinding wheel diameter 230 mm
Grinding wheel bore size 22.3 mm
Grinding wheel speed 4000 rpm
Circular saw blade rotation speed 14 rpm
Grinding wheels motor power 2,2 kW
Installed power 3,5 kVA
Weight 450 kg

Features

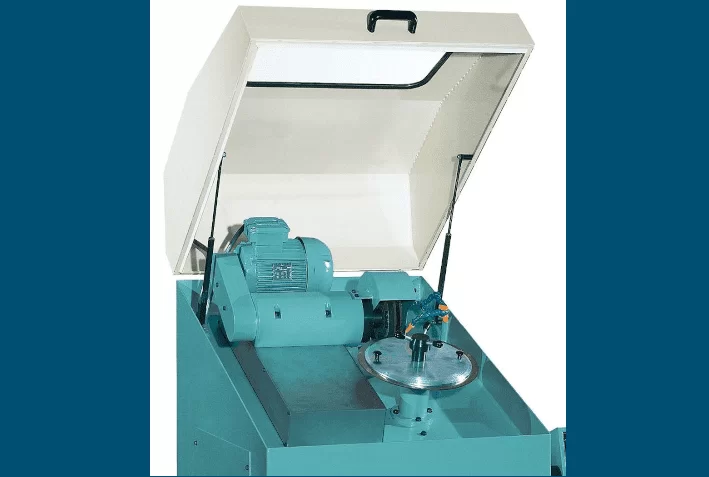

  • Cabin for full working area enclosure
  • Grinding wheels spindle, circular saw blade spindle and grinding slide extremely rigid

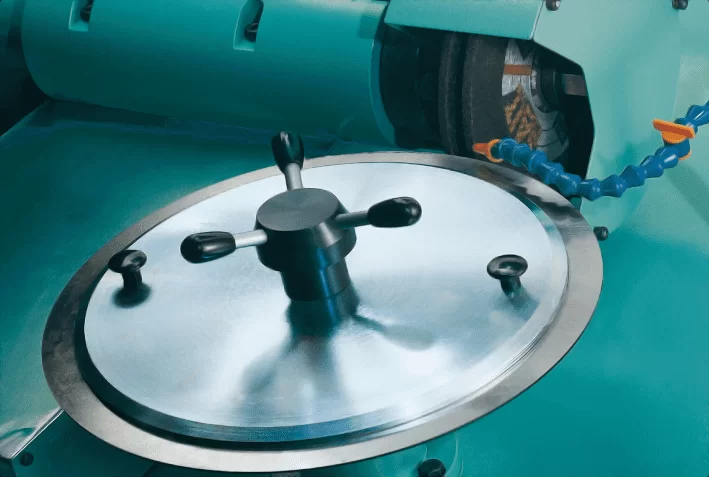

  • High rigidity assembly of the circular saw blade with clamping flanges
  • Short grinding time, for the machining with two coupled grinding wheels
  • Coolant system for high cooling grinding
  • LED tube lamp for working area lighting
  • Easy operation with short set-up times
  • Short machine set-up times and very easy to use
  • Low and simple maintenance

Optional Equipment

  • Machine version for circular saw blades from 210 to 630 mm diameter
  • Electronically controlled variable speed of saw blade rotation
  • Magnetic separator for coolant depuration
  • Magnetic separator with sludge collection
